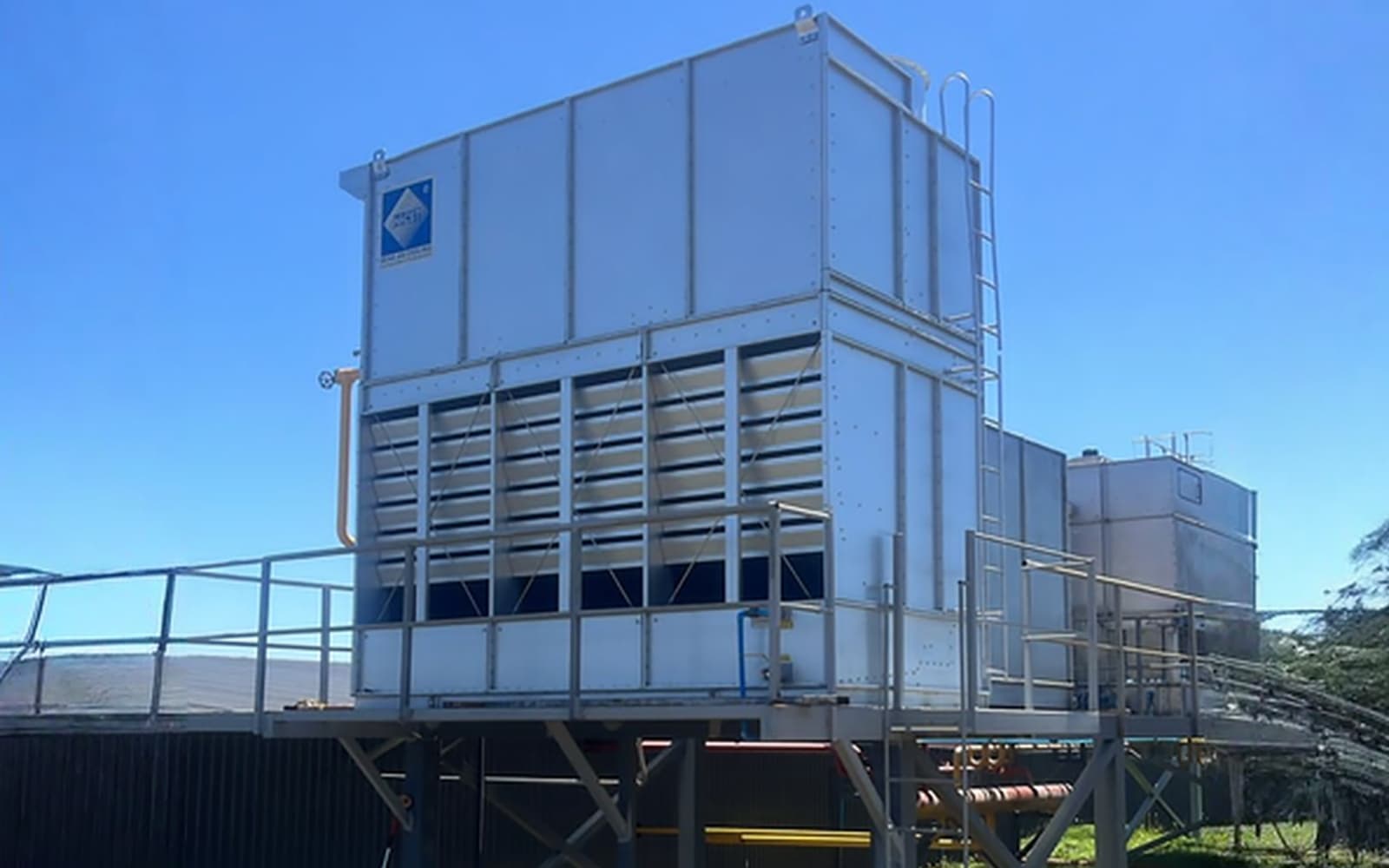

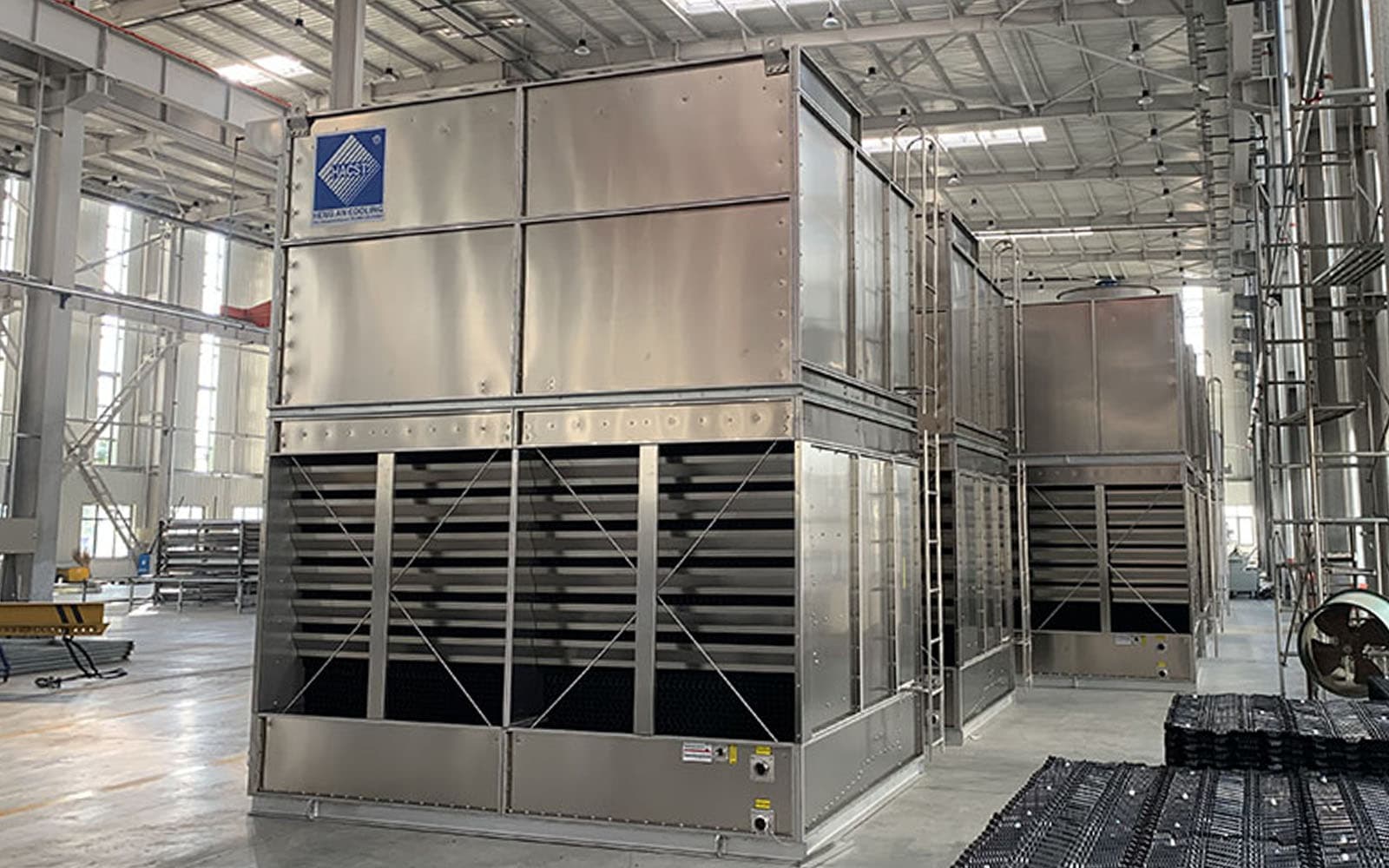

ZHX Combined Flow Evaporative Condenser

The food industry                                                          Chemical medicine Poultry Slaughtering Plant                                              Inter-cooling of methanol/methanol synthetic ammonia compressor Multi-purpose cold Storage                                            Syngas cooling condensation Beer and beverage industry                                           Methanol distillation process cooling condensation Industrial ice/Skating Rink                                              Gas cooling of natural gas or coke gas exchange process Ice cream factory                                                              Purification process as weoo as cooling condensation Fish processing industry                                                  Steam condensation of turbine,Ethyl acetate condensation

Compared with the traditional condenser,‘HACST’evaporative condenser has the following advantages: 1、Energy Saving Compared with air cooled condenser, the condensing temperature of evaporative condenser is much lower. Every 1℃ the condensing temperature increased, the power consumption for refrigerating capacity per unit will be increased by 3%~3.5%. So‘HAC’evaporative condenser has better energy conservation effect. 2、Water Conservation ‘HACST’evaporative condenser makes full use of the latent heat from water vaporization, which could reduce the water loss of spraying water effectively. Its very important for the region where lack of water. 3、Compact structure, investment cost low ‘HAC’evaporative condenser has compact structure, small size and less footprint, because its structure equal to one unit that combined condensing coil and cooling tower, no need to equip a cooling tower for it any more.Meanwhile, it effectively reduce the coil heat exchange area, fan quantity and motor power consumption by making full use of evaporative cooling. 4、Environmental-friendly Many chemical plants use tube and shell type or atmospheric type condenser in the past, and vent depressurization is a way often used in the summer due to its condensing pressure too high, but not all non-condensable gas exhausted, which contains a large amount of ammonia, even high to 90% sometimes according to sampling analysis from relevant departments not only ammonia loss much, but also environmental pollution seriously. But it won’t happen for HACST evaporative condenser.

Working Principle For ZHX combined flow evaporative condenser, the coil will soaked fully by spraying water when process fluid flows inside, meanwhile, the heat of working fluid will be transferred by wall of coil tube, and become saturated wet-hot vapor after mixed with water and air, then it will be discharged into atmosphere by fan, but water will be collected into water basin by drift eliminator for recycled spraying, low water consumption. The spraying water temperature will be reduced by PVC infill during the recycling, and it flows in same direction to fresh air, to cool coil mainly by sensible heat conduction way.

(1)Excellent Heat Exchange Performance
