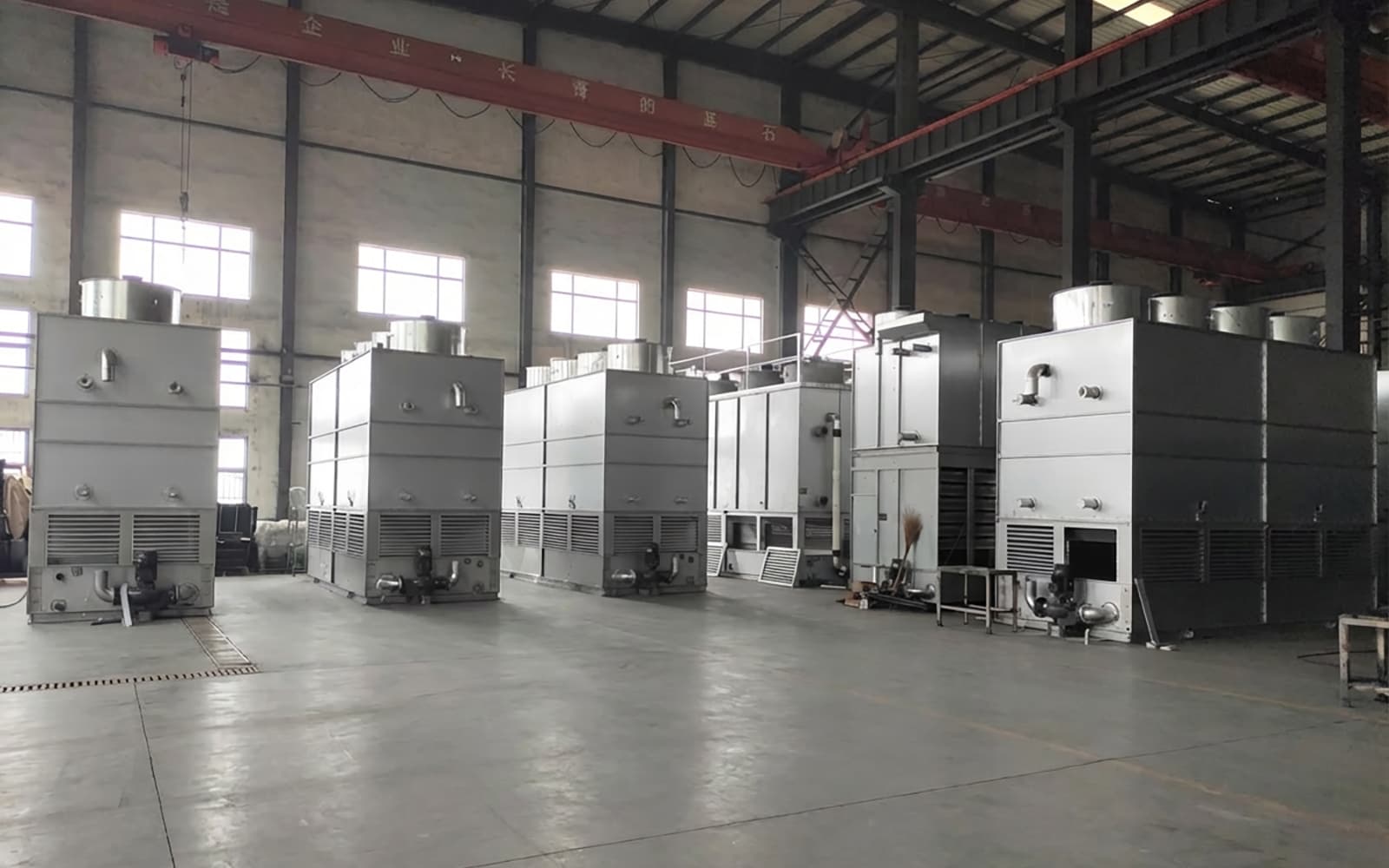

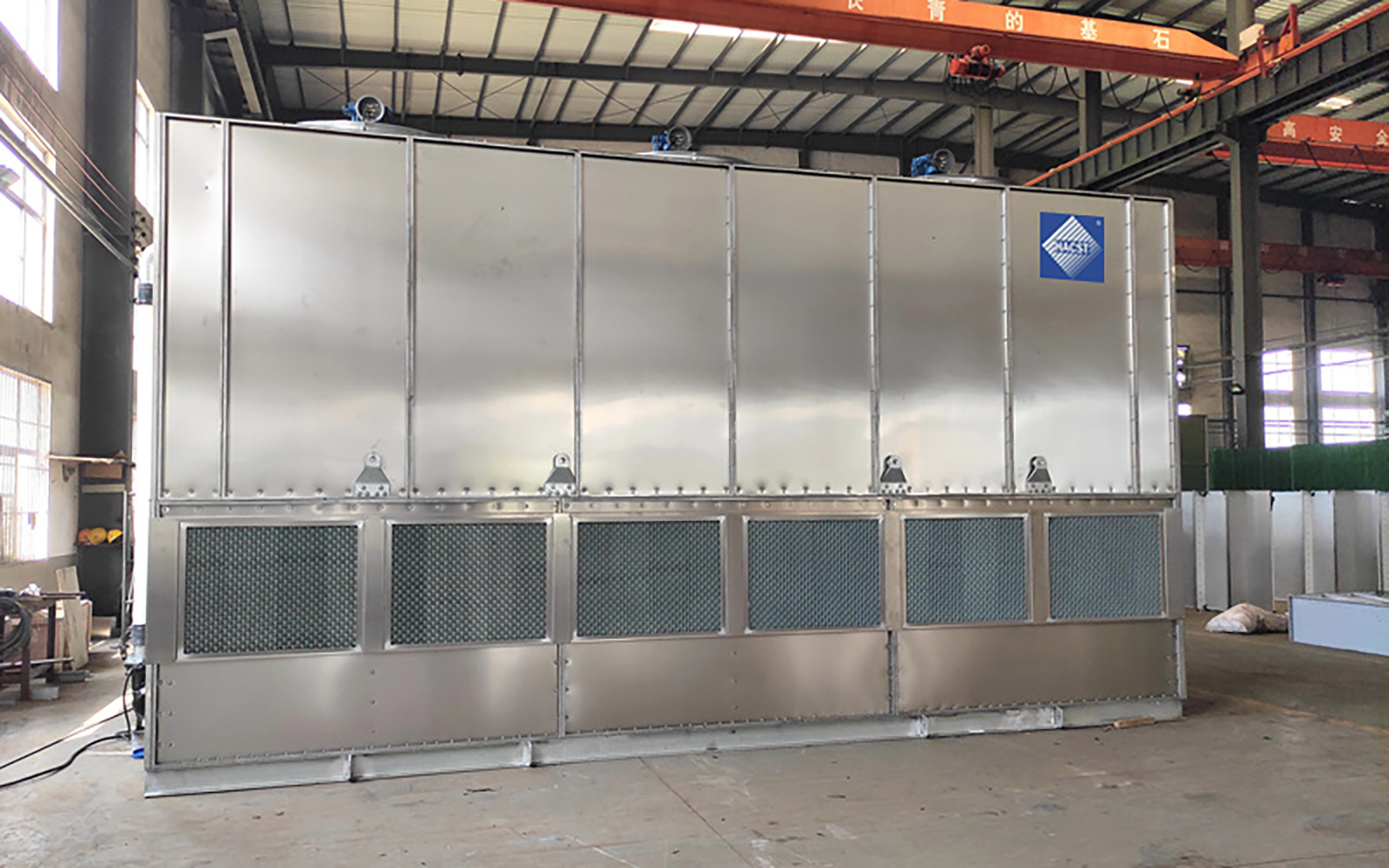

ZNX Counterflow Evaporative Condenser

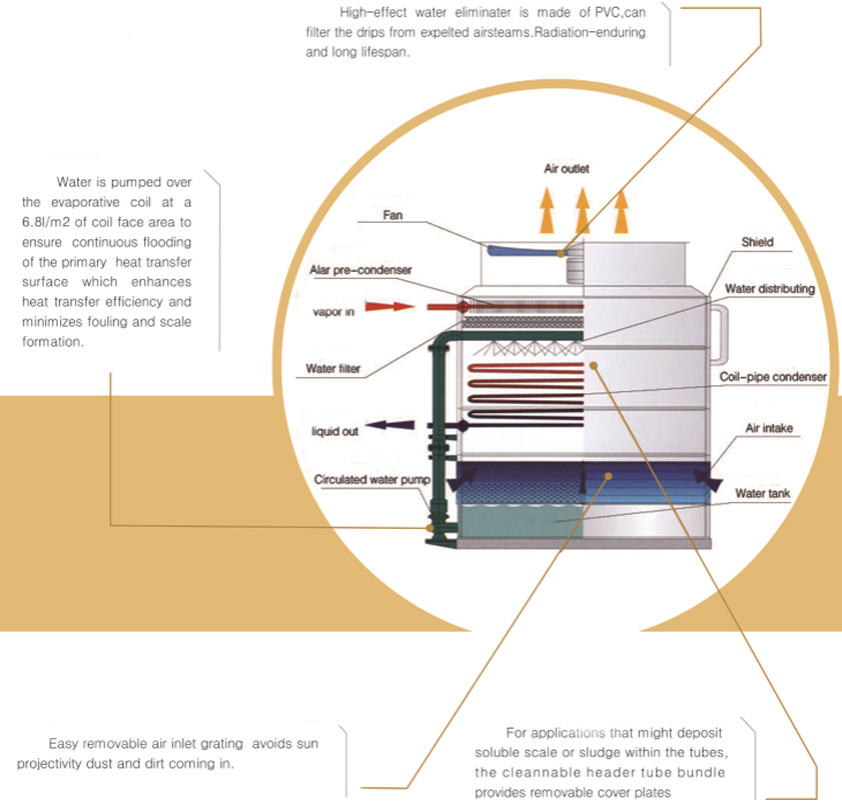

Advantage: 1, No infill designed, more compact structure, lower profile, less installation area required, and easy for transport and installation. 2,Suitable to severe environment as its structure muchmore close, which could prevent from sand and dust. 3, Suitable to high temperature fluid, because hot spraying water will not distort PVC fill as no PVC fill designed. 4, Freezing resistance,because there is no PVC fill to slow down spraying water flow speed.

Model Selection 1, Confirm Total System Heat Rejection Capacity: Total System Heat Rejection Capacity = Total latent heat of condensing medium inside + Total heat rejection of condensing medium (For refrigeration system, it could beselected based on system refrigeration capacity) 2, Confirm the design conditions: Condensing Medium, Condensation Temperature, and Wet Bulb Temperature 3, Determine the correction coefficient ‘R’ by lookup correction coefficient table. 4, Determine Corrected Heat Rejection Capacity: Corrected Heat Rejection Capacity = Total System Heat Rejection Capacity * ‘R’ (correction coefficient). 5, Model selection: select the evaporative condenser model with rated capacity equal to or greater than the Corrected Heat Rejection Capacity. Example （Take Ammonia refrigeration as an example） 1, Total Heat Rejection Capacity of the ammonia refrigeration system is 1200 kw. (Total Heat Rejection Capacity = Compressor refrigerating capacity + Compressor shaft power) 2, Operating condition: Condensation temperature 36 ℃, Wet Bulb Temperature 28 ℃. 3, Lookup ‘Correction Coefficient Table for R717’, and get the correction coefficient 1.35. 4, Determine Corrected Heat Rejection Capacity: 1200kw x l. 35 = 1620kw 5, According to ZHX model table of HAC evaporative condenser, select model ZHX-1680 as it’s the smallest one in these models with capacity greater than1620 kw. Notice 1, The parameters in the datasheet is for reference only. 2, Operating weight is the weight of equipment full of refrigerant, and bottom water tray full of spraying water. 3, For client’s non-standard requirement, customization available. 4, The rated heat rejection capacity in the datasheet is calculated based on following design conditions: Condensing Temperature=37℃，Maximum Wet bulb Temperature=26℃.

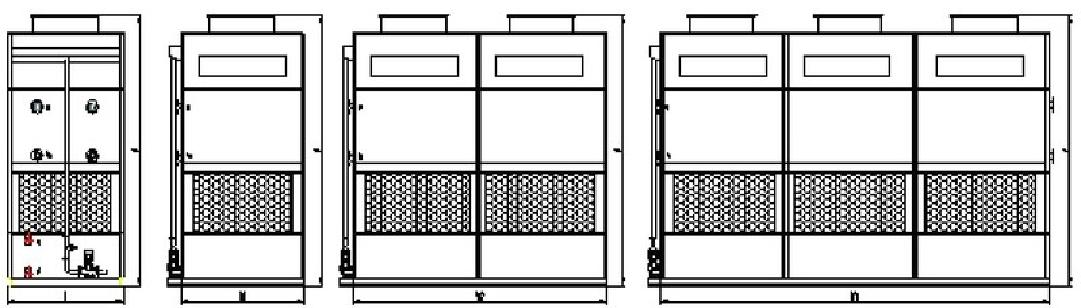

(m³/h) Dimension ZNX-70 70 1 0.75 15000 1 0.37 16 1230*1150*3180 ZNX-100 100 1 1.5 18000 1 0.55 23 1230*1150*3440 ZNX-200 200 1 2.2 30000 1 0.75 28 1925*1150*3650 ZNX-320 320 1 3 45000 1 1.1 53 1925*1840*3840 ZNX-380 380 1 4 65000 1 1.1 53 1925*1840*3840 ZNX-475 475 1 5.5 71000 1 1.1 53 1925*1840*3900 ZNX-595 595 1 7.5 87000 1 1.5 70 2470*1840*4100 ZNX-735 735 1 7.5 100000 1 2.2 84 2790*1840*4450 ZNX-850 850 2 4 65000 1 2.2 100 3770*1840*4220 ZNX-1050 1050 2 4 65000 1 2.2 100 3770*1840*4450 ZNX-1285 1285 2 5.5 80000 1 3 150 3770*2380*4510 ZNX-1490 1490 2 7.5 100000 1 3 150 3770*2380*4630 ZNX-1765 1765 3 5.5 77000 1 5.5 233 5610*2380*4550 ZNX-2010 2010 3 5.5 80000 1 5.5 233 6046*2380*4550 ZNX-2245 2245 3 5.5 80000 1 5.5 233 6046*2380*4630 ZNX-2450 2450 2 11 125000 2 3 150 6046*2980*4650 ZNX-2600 2600 2 11 125000 2 3 150 6046*2980*4650 ZNX-2850 2850 2 11 140000 2 3 150 6046*2980*4650 ZNX-3000 3000 2 15 180000 2 3 150 6046*2980*4830 ZNX-3400 3400 3 11 125000 2 4 180 7240*2980*4830 ZNX-3800 3800 3 11 125000 2 4 180 7830*2980*4830 ZNX-4200 4200 4 7.5 105000 2 5.5 233 8640*2980*4970 ZNX-4600 4600 4 11 125000 2 5.5 233 9350*2980*4970 ZNX-5000 5000 4 11 140000 2 5.5 233 9350*3190*4970

Selection of Evaporative Condenser
